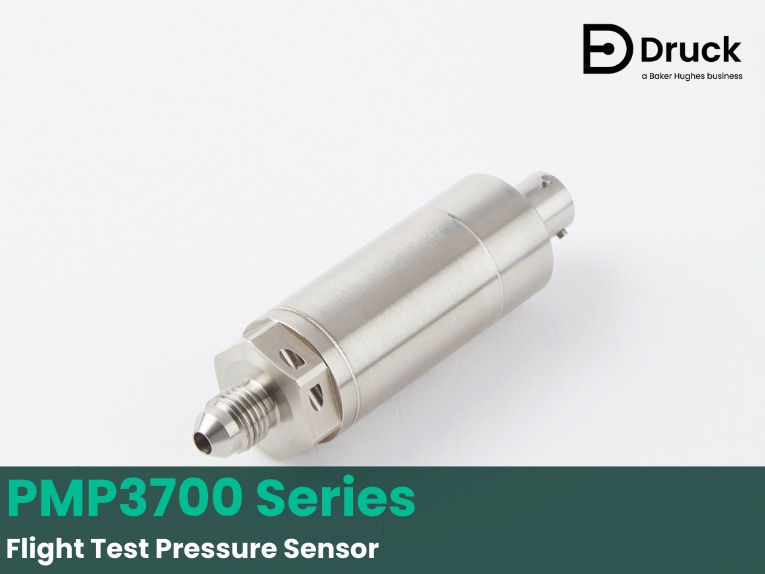

PMP3700 Series

Flight Test Pressure Sensor

Druck traditional range of Aerospace sensors:

Druck Aerospace Sensors are specifically designed and tested to meet the harsh requirements found within Aerospace applications.

Our sensors are founded on the highly reliable silicon chip produced within Druck’s own 21st Century clean room. The Piezoresistive technology has been developed and enhanced for almost 50 years, which is widely used within the Aerospace Flight and Ground Support markets . This compact analogue sensor technology provides unrivalled performance across a wide Pressure and Temperature range, which lends itself very well for use in hydraulic applications. No micro-processors are adopted within this product, which enables reliability at high temperatures to be achieved. The conditioned millivolt output is distributed through a 4-wire configuration.

PMP3700 Series

Flight Test Pressure Sensor

The amplified PMP3700 pressure sensors have been specifically designed to meet the harsh test requirements encountered in aerospace applications.

The PMP3700 sensors offer a high performance (digitally characterized) sensor that can be configured to suit the customer’s specific requirement.

Product Details:

Technical features:

- Digitally characterized high performance test pressure sensor

- Absolute, gauge and sealed gauge options available

- Fully welded stainless steel construction

- Hermetically sealed

Performance:

- Accuracy and Stability: ±0.2% FS to ±0.5% FS.

- Pressure range: 350 mbar to 350 bar gauge and sealed gauge (5 to 5076 psi) and 1.2 bar to 350 bar absolute (17.5 to 5076 psi)

- Temperature range: -55°C to +125°C

- ​Elec outputs: 0.5 to 5 VDC (three or four wire)

Applications:

- Accurate pressure measurements for use in aerospace ground and flight tests

- Suitable for automotive test and many Industrial applications
