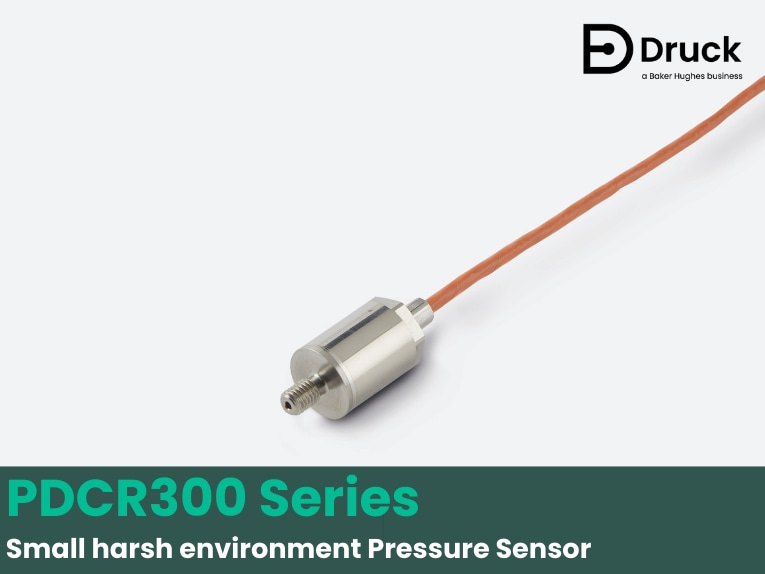

PDCR300 Series

Small harsh environment Pressure Sensor

Druck traditional range of Aerospace sensors:

Druck Aerospace Sensors are specifically designed and tested to meet the harsh requirements found within Aerospace applications.

Our sensors are founded on the highly reliable silicon chip produced within Druck’s own 21st Century clean room. The Piezoresistive technology has been developed and enhanced for almost 50 years, which is widely used within the Aerospace Flight and Ground Support markets . This compact analogue sensor technology provides unrivalled performance across a wide Pressure and Temperature range, which lends itself very well for use in hydraulic applications. No micro-processors are adopted within this product, which enables reliability at high temperatures to be achieved. The conditioned millivolt output is distributed through a 4-wire configuration.

PDCR300 Series

Small harsh environment Pressure Sensor

Small form, light weight test pressure sensor

This product has been specifically designed and tested to meet the harsh requirements found within many Aerospace applications, whilst also satisfying many industrial requirements.

Product Details:

Technical Features

- Robustness

- High accuracy analogue output

- Reliability

- Small form factor

- High temperature constant use

- Mechanically resilient to installation and torque

- Elec connectors: 4-wore flying lead

- Pressure connectors: M5x0.8-6g

- Mass: 40 grams with 1 meter of cable

Performance

- Accuracy and Stability: ±3.00% FS total accuracy

- Pressure range: 1.1 bar: 350 bar absolute (16 to 5076 psi)

- Temperature range: -55°C to +150°C

- ​Elec outputs: 0 to 120 mV
