Druck’s Air Data Test Set Range

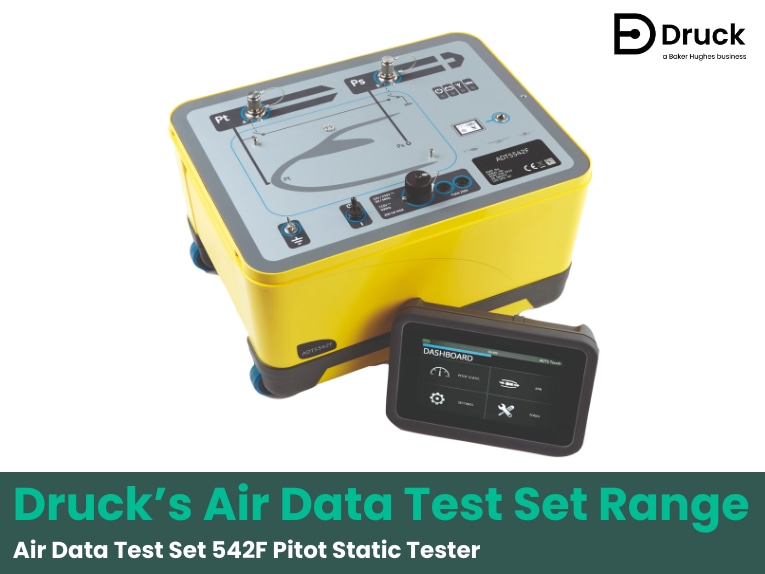

Air Data Test Set 542F Pitot Static Tester

Applications and Industries
Pitot Static testing of aircraft and avionic equipment in:
• Aerospace, Defence and Space

Highlights
• Cockpit controlled using ADTS Touch hand terminal with Bluetooth® wireless technology
• Accuracy suitable for RVSM validation (FL550 version)
• Low airspeed option
• 12-month accuracy as standard
• 15-month accuracy option
• Engine Pressure Ratio (EPR) option
• Druck ADTS global service support
• Lower cost non-RVSM airspace option (FL280)
• Patented integration with Viavi AVX-10K Flight line test set for combined pitot-static and Mode-S / Mode-C testing
• Simple semi-automated calibration using PACE Tallis
• 24 months warranty as standard

ADTS Touch
The ADTS Touch is a removable, robust wireless hand terminal that communicates to the test set via secure
Bluetooth® wireless technology. This technology and the innovative design of the ADTS Touch remove the need to run cables or hoses into the cockpit.*

*Due to individual country radio license requirements, Bluetooth® wireless technology may not be available in some countries. An up-to-date list of countries that the ADTS Touch with Bluetooth® wireless technology is
licensed to be used in is available upon request from Baker Hughes. A rechargeable battery pack enables up to eight hours of continuous ADTS Touch wireless use. The battery can be charged by the ADTS Touch when connected to the test set, by power cable, or by an optional desk charger.

As an alternative, the ADTS Touch can be used as a conventional wired hand terminal, with or without a battery
pack, by attaching a supplied cable, or as a local user interface by docking the hand terminal onto the ADTS542F. A large, easy-to-read display in pressure or aeronautical units and swipe navigation, with intuitive icons that are logical and easy to remember, allow you to quickly scroll through available tasks. The ability to set “aircraft safety limits,” enable “auto leak recovery” and save or recall aircraft test sequences make the ADTS Touch an easy-to-use hand terminal. Its multi-language selection further enhances the ADTS Touch’s usability.

For the more demanding wireless application, such as a large aircraft outside of a hanger (nothing for the wireless signal to bounce off), the ADTS Touch-ER offers a solution. The ADTS Touch-ER extends the wireless range, by the use of a fixed external antenna, or by using the supplied window attach antenna.

ADTS542F
The ADTS542F, supplied with an ADTS Touch, is a small, lightweight and cost-effective portable two-channel flightline pitot static tester for “Aircraft on the Ramp” testing. The ADTS542F is also ideal for any aircraft with low pitot static demands or for light aircraft, including helicopters and propeller-driven airplanes. To ensure an accuracy that is suitable for RVSM (reduced vertical separation minimum) validation, the new ADTS542F incorporates advanced Druck TERPS (trench etched resonant pressure sensor) technology together with innovative Druck proportional pressure control.

ADTS542F and ADTS Touch specifications
• ADTS542F pitot static tester
• ADTS Touch hand terminal
• AC power lead: 1.8 m (6 ft) length approximately
• ADTS Touch remote connecting cable: 5m (16ft) length approximately
• ADTS Touch battery pack
• ADTS Touch AC power supply unit
• Pack of Ps and Pt color labels
• Multi-language installation manual
• Accessories bag
• Operator manual (installed in ADTS Touch)
• Calibration certificate traceable to international standards
