Diesel Garbage Vehicle configuration six

Chassis: QL1070BUKAY

Dumpster volume (m3): 16.5

Allowable loaded garbage mass (kg): 1900

Platform working height (mm): 2200∽5800

Front platform telescopic range (mm): 0～800

Maximum dumpster turning angle (°): 35

Overall dimensions (L×W×H) (mm): 7985×2260×3500

Overall quality (kg): 5500

Engine: 4KH1CN6LB: Exhaust pollutants meet the requirements of GB 17691-2018 Stage VI limits, exhaust smoke meets the requirements of GB 3847-2018

Transmission: MSB-5SM

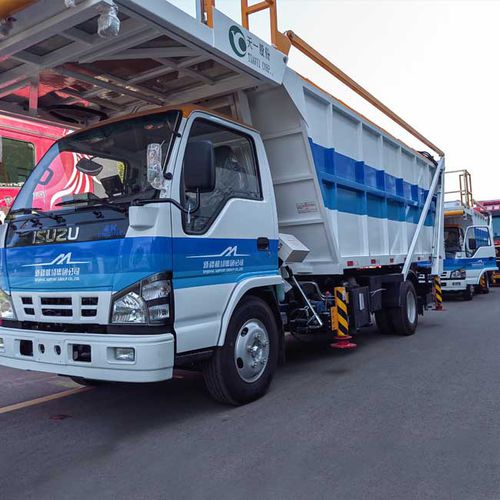

WTJ5060LJC Diesel Garbage Vehicle is suitable for A300, A310, A320, A330, A340, B737, B747, B757, B767, B777, etc. The volume of garbage tank is 16.5m3; the rated loading capacity is 1900kg, and the tank is tilted along with the platform, so that the garbage can fall to the bottom smoothly. The working platform is articulated with the front end of the box and connected to the end of the diagonal support beam with its rocker arm by a tie rod, constituting a parallelogram mechanism. When the gantry is lifted and lowered, the box is flipped around the fixed axis on the diagonal support beam, and the platform is rotated around the box and is always parallel to the ground, so as to ensure the staff's operation.
