Mobile Telescopic Passenger Boarding Bridge

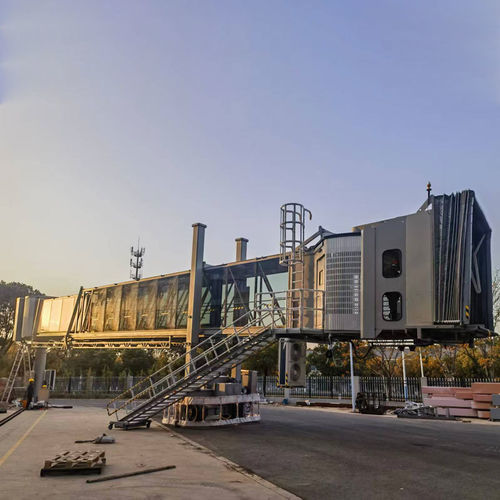

The Mobile Telescopic Passenger Boarding Bridge will form a safe weather protected gangway for passengers between the terminal building and an aircraft.

The Mobile Telescopic Passenger Boarding Bridgewill be of 2- or 3-tunnel type. The larger section will be installed toward the aircraft and the smaller section toward the rotunda. The rotunda will be accessed from the terminal building alternatively via a fixed tunnel and a rotunda access height between 4 and 7 meters above apron level.

The design of the MTB includes glass walls of hardened thermo safety glass. An electro-hydraulic elevation by two hydraulic cylinders located inside the lift columns to adjust the height for the Mobile Telescopic Passenger Boarding Bridge for access to a wide range of aircraft like C,D, E and F.Drive unit by electro-mechanic planetary gearbox controlled by frequency converter and PLC for speed control.

The Mobile Telescopic Passenger Boarding Bridge will be PLC controlled from an operator’s panel equipped with joystick, push buttons and touch screen dwill beplay and emergency stop.

The height and pre-position corresponding to a number of aircraft types can be automatically pre-set. Access to the aircraft will be by a cabin, which will be fitted with a weatherproof bellows canopy and automatic levelling.

Mobile Telescopic Bridge have to In order to meet the stress load calculation standard of China Civil Aviation Standard MH/T6028, and the stability and strength requirements of EU standard EN 1915-2.
