What models are available for Electric Airport ambulift
What models are available for Electric Airport ambulift

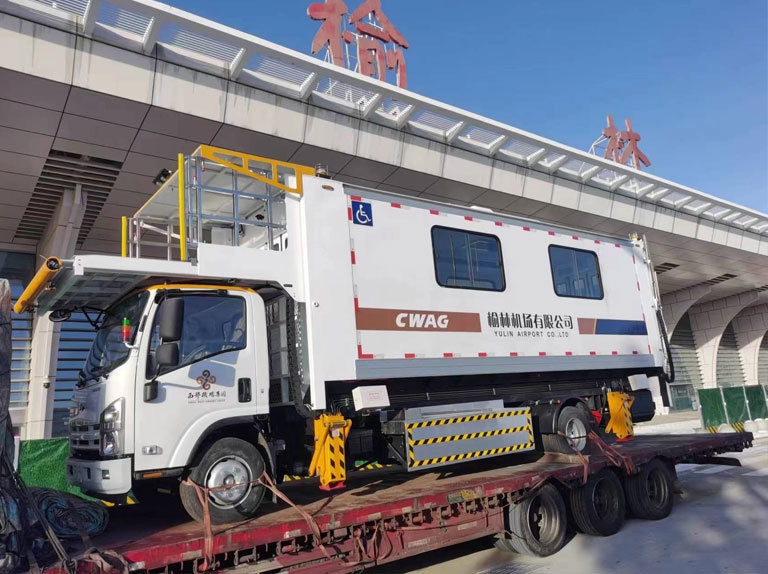

JSTY5100JCRE type Electric Airport ambulift is applicable to A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and other aircraft types in addition to Airbus A380 aircraft The use of.
The Electric Airport ambulift is configured with four Performance indexes
Driving motor model: TZ370XS-LKM1201
Controller model: VCU06
Battery model: L150TX8
Platform working height (mm) : 2200 ~ 6100
Body load rating (kg) : 4000
Fixed platform load rating (kg) : 1700
Mobile platform load rating (kg) : 1100
Platform expansion adjustment range (mm) : 0 to 600
Fixed platform dimensions (L × W) (mm) : 2300×2000 2300×2000
Mobile platform dimensions (length × width) (mm) : 700×1960
Maintenance weight (kg) : 10600
Wheelbase (mm) : 5200
Overall dimensions (length × width × height) (mm) : 9570×2400×3770
Maximum speed (km/h) : 85
Minimum ground clearance (mm) : 180
Driving range (km) : 340
Chassis model: QL1103BEVEYMAY
