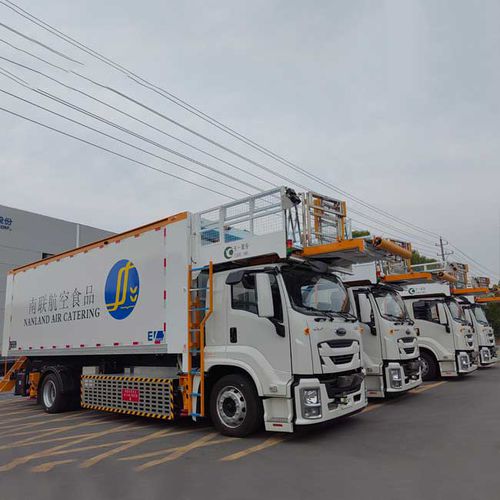

JSTY5180JSPE Aircraft Catering Truck (Electric) It is mainly composed of the QL1180BEVELQHY type II electric chassis produced by Qingling Automobile Co., LTD., the scissed-type hydraulic lifting mechanism, the elevatable front platform, the carriage, the front and rear sliding doors, the vehicle thermal management system, and the retractable and stable foot components (360° round-view monitoring, driver monitoring system, airport special transport vehicle supervision and the management of big data flat car enterprises Table, one-button operation, Bluetooth remote control brake air conditioning system, cold storage system optional). The front platform of the Aircraft Catering Truck (Electric) can be moved back and forth, left and right, and can be connected to various types of aircraft with the height of the cabin door between (2550 ~ 6200) mm. The rated load of the carriage is 6500kg, the rated load of the fixed platform is 2200kg, the rated load of the movable platform is 800kg, and the driving range is 440km.

Isuzu chassis Aircraft Catering Truck (Electric) eight parameters configuration

Driving motor model: GC-TM1300-01

Travel motor controller model: GC-CU1300-01

Energy storage device assembly model: L228H01

Platform working height (mm) : 2550 ~ 6200

Body load rating (kg) : 6500

Front platform load rating (kg) : 3000

Front platform moving part load rating (kg) : 800

Adjustment range of the left and right parts of the front platform (mm) : 0 ~ 700

The expansion adjustment range of the moving part of the front platform (mm) : 0 ~ 600

Dimension of fixed part of front platform (L × W) (mm) : 2050x2265

Dimensions of the moving part of the front platform (L × W) (mm) : 950x1200

Quality (kg) : 13790

Overall dimensions (length × width × height) (mm) : 10500×2500×3700

Driving range (km) : 440

Chassis model: QL1180BEVELQHY

External dimensions (length × width × height) (mm) : 7500×2500×2400

Front platform fixed part load rating (kg) : 2200

Total energy of energy storage device (kWh) : 281.92
