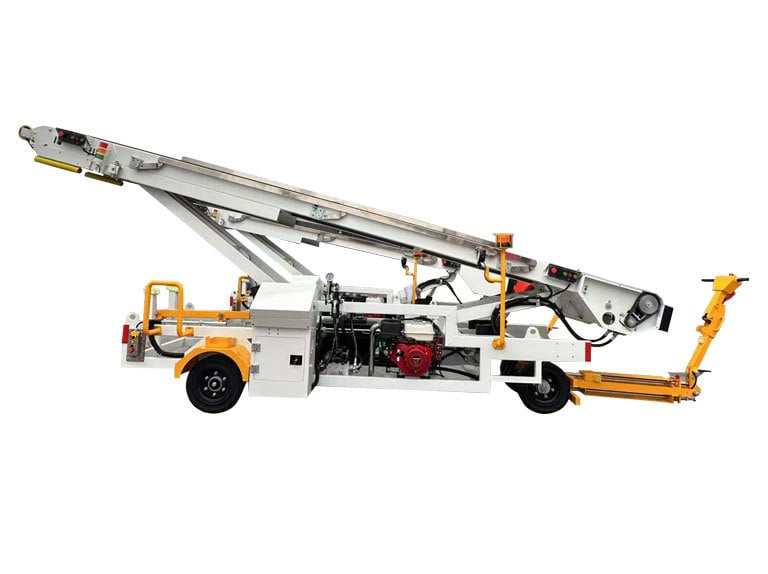

Towed bulk cargo loader

Towed bulk cargo loader

The towed bulk cargo loader is powered by an engine driven hydraulic gear pump as the power source, and the direction of travel is controlled by a manual push towing rod, and the direction of advance is controlled by a rotating towing rod. The height of the bulk cargo loader platform from the ground is 1000 ~ 3600mm. The height of the bulk cargo loader platform from the ground is 1000 ~ 3600mm.

Safety device:

Driving and lifting, conveyor belt work interlock;

Conveyor belt work and front and rear lift interlock;

A set of conveyor belt work buttons are installed on the front and back of the conveyor belt frame beam, and there is an emergency stop button; Can make the engine emergency stop, hydraulic system stop working;

Hand throttle is not reset, the gear does not work;

The lifting of the front and rear lift frames can only be controlled in the cockpit;

All exposed controls are rain proof.

Towed bulk cargo loader technology parameter table

Overall dimensions (length × width × height) : mm 6900×1490×1650

Vehicle mass kg: 2000

Minimum turning radius m: 7

Departure Angle ° : 8.5

Approach Angle ° : 12

Maximum elevation Angle of transmission girder: 30

Beam length mm: 6600

Beam width mm: 800

Belt width mm: 600

Transmission speed m/s: 0.16 ~ 0.5

Conveyor belt front-end lifting range mm: 900-3745

Conveyor belt rear end lifting range mm: 485-1585

Minimum ground clearance mm: 150
