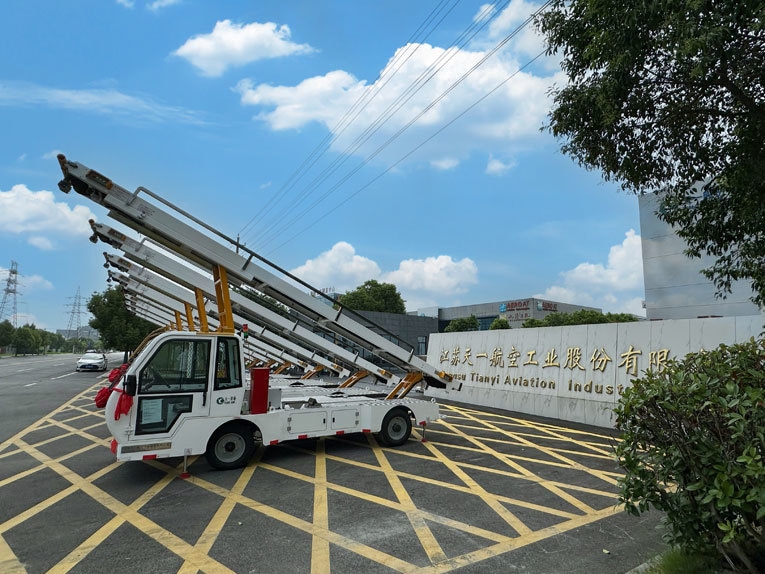

88.87kWh Rated Electric Currency Belt Loader

88.87kWh Rated Electric Currency Belt Loader product standard

88.87kWh Rated Electric Currency Belt Loader product standard

Reference materials for IATA AHM 905 Civil aircraft apron support Equipment

Basic Requirements for Ground Support Equipment at IATA AHM 910 Airport

IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment

Technical Specification of IATA AHM-925 Self-driven Conveyor Belt Loader

MH/T 6030-2014 Bulk Cargo loader

AC-137-CA-2015-17 Specification for Inspection of Bulk Cargo Loaders

GB/T 18488-2006 Electric Motors and Their Controllers for Electric Vehicles

GB/T 24347-2009 DC/DC Converter for Electric Vehicles

GB/T 18384-2001 Safety Requirements for Electric Vehicles

GB/T 18487-2001 Conductive Charging System for Electric Vehicles

GB/T 20234-2015 Connecting Devices for conductive Charging of Electric Vehicles

GB/T 27930-2011 Communication Protocol between Off-board Conductive Chargers and Battery Management Systems for Electric Vehicles

DB11/Z993-2013 Technical Specification for Remote Service and Management System of Electric Vehicles

Main technical parameters of 88.87kWh Rated Electric Currency Belt Loader

Driving motor model: HCDM030HP2

Model of driving motor controller: HC30LKPIC-K21-V1-TY

Steering shaft model: 3000000-HY430A

Drive shaft model: 2400000-HY540A

The working range of the conveyor belt (mm) : The lifting range at the front end: 950-4580

The lifting range at the rear end: 290 to 1680

Transmission speed (m/s) : 0.16-0.5

Conveyor belt width (mm) : 700

Conveyor belt carrying capacity (kg/m) : 140

Overall dimensions (length × width × height) (mm) : 8050×2150×1950

Wheelbase (mm) : 2900

Maximum speed (km/h) : 30

Curb weight (kg) : 3620

Endurance capacity (km+t) for small airports: 305+459

Large airports: 308+456

Medium-sized airport: 306+456

Other features: Optional cab and canopy

Chassis model: JSTY5040JCSE-1000000A

The outer diameter of the channel circle (mm) : 13,500

Hydraulic motor model: HCDM007MG1

Hydraulic motor controller model: HCDM007CL1

Model of the energy storage device assembly: L200B01

Total energy storage device (kWh) : 88.87
