Towed AC-DC ground power vehicle

Towed AC-DC ground power vehicle

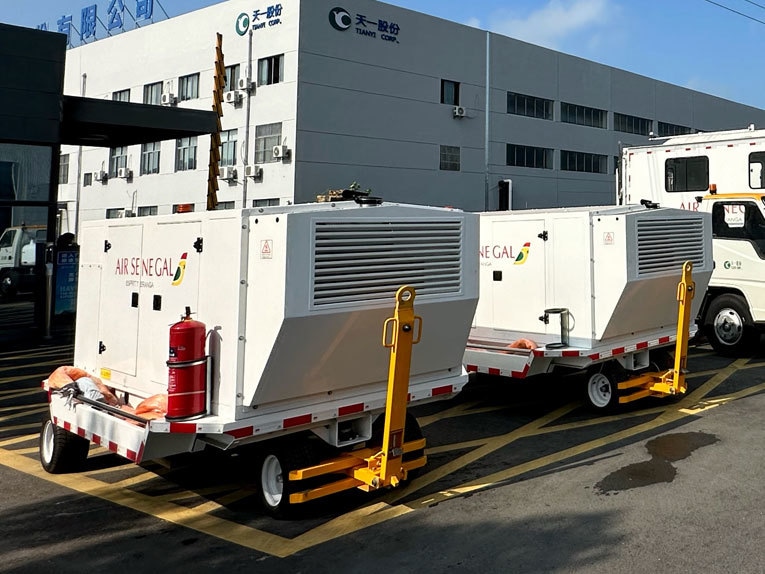

Towed AC-DC ground power vehicle is a towed and mobile aircraft ground power supply unit driven by a diesel engine for power generation. The Towed AC-DC ground power vehicle can provide a stable power supply of 400 Hertz (Hz). When the aircraft is parked and its on-board generator is not working, it can provide a stable power supply for the electrical equipment of the aircraft.

The main components of the Towed AC-DC ground power vehicle include the diesel engine, brushless medium-frequency generator, automatic voltage regulation system, power output system, steel frame trailer frame and the outer cover of the unit with noise reduction and heat insulation functions. This power supply unit complies with the EU STAGE 3A of the United States and the National III emission standards.

The components of the Towed AC-DC ground power vehicle ground power supply unit are simply designed, sturdy and durable. It is also equipped with safety protection devices such as the automatic delayed cooling shutdown program of the engine and the emergency stop button to ensure that the unit can work without failure for a long time. The fluorescent display screen and the illuminated control panel of this unit provide convenience for night operation.

The main parameters and performance indicators of Towed AC-DC ground power vehicle

Overall dimensions (length × Width × height) :

3390mm×1900mm×1900mm

Self-weight: 2500KG

Working environment

Ambient temperature: -25℃ to +50℃

Relative humidity: ≤95% (at 35℃)

Altitude: No more than 4,000 meters

Output power supply:

Rated power of AC output: 93.75KVA

Rated power of AC output: 75KW

Rated current of AC output: 271A

Rated AC output voltage: 115/200 V

Power factor: 0.8

Rated output frequency: 400 HZ

Rated power of DC output: 22.8 KW

Rated current of DC output: 800 A

Rated DC output voltage: 28.5V

Rated speed: 1846r/min

Parameters of the electrical instrument system

System voltage: 24 V

Battery capacity :12v/ 80Ah (two in series)
