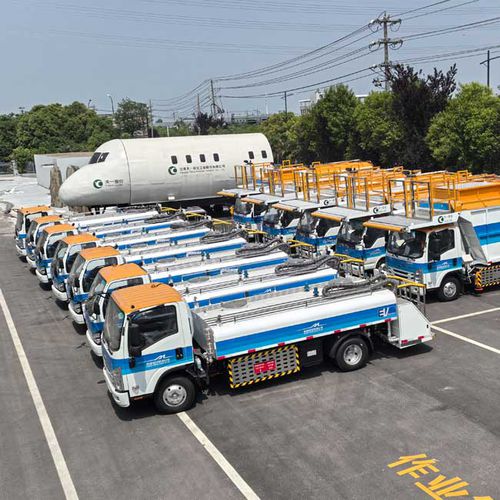

Aircraft Lavatory and Water Trucks

Aircraft Lavatory and Water Trucks clear water tank volume is 1900L, sewage tank volume is 3800L, circulating water tank effective volume is 200L, water supply flow is 235L/min; The sewage suction flow rate is 600L/min. The interior of the water tank is equipped with a 4mm thick stainless steel anti-sway plate formed by molding, which prevents the vehicle from shaking when the water tank is filled with water. Moreover, it is firmly welded, reasonably arranged and easy to clean. Vent valves are respectively installed at the top of the water tank. The fixation of the two water tanks to the vehicle frame adopts the connection form of rubber soft pads, which reduces the vibration of the tank body caused by the vehicle during operation.

The motor drives the vacuum pump to evacuate the sewage tank, creating a certain negative pressure inside the tank, thus drawing the sewage into it. When the aircraft sewage pipe joint is connected, the aircraft sewage valve is opened, and the vacuum pump switch is turned on, the aircraft sewage tank can be quickly and clean sucked. Vacuum cleaning, on the one hand, improves work efficiency; On the other hand, it can ensure that the sewage does not seep out from the pipe joint to avoid pollution to the airport environment and staff, and is also beneficial for pumping the sewage tanks of smaller aircraft models.

Aircraft Lavatory and Water Trucks Configuration 7 technical parameters

The volume of the fresh water tank (L) :1900

Sewage tank volume (L) :3600 (with vacuum pump) /3800 (without vacuum pump)

Water supply flow rate (L/min) :235

Water supply pressure (MPa) :0.25-0.35

Curb weight (kg) :4750

Overall dimensions (length × width × height) (mm) :6965×2300×2250

Maximum speed (km/h) :90

Range (km) :315

Chassis model :QL1070BEVECHA2Y

Circulating water tank volume (L) :200 (with vacuum pump) /0 (without vacuum pump)

Drive motor model :YTD060W23

Model of the drive motor controller :KTZ50X35S

Motor pump model :JSTY5060GQSE-1002002

Motor pump controller model :JSTY5060GQSE-1002001

Model of the energy storage device assembly :L173TB2

Total energy storage device (kWh) :106.95

The lifting height of the working platform (mm) :390-3100
