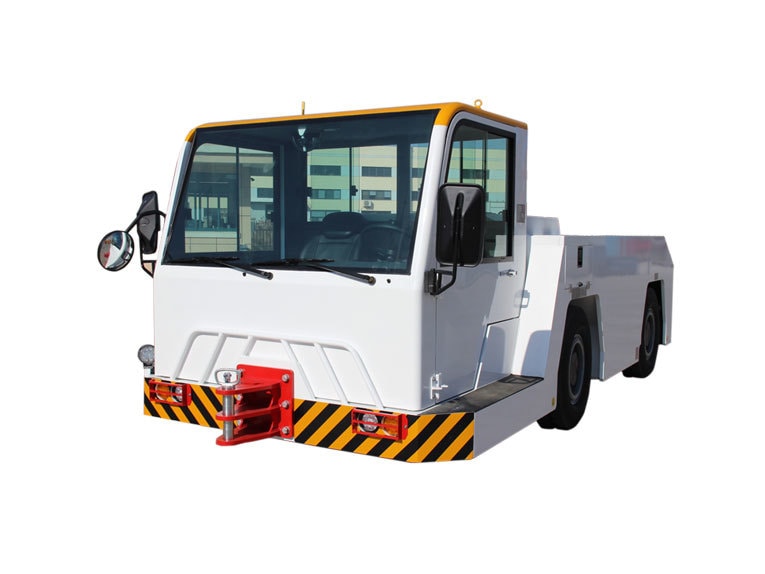

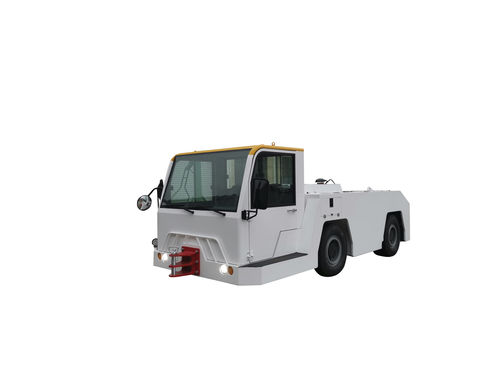

The JSTY5150TQY aircraft tow tractor is made up of commercial chassis, engine, gearbox, transmission shaft, front/rear axle, driver’s cabin, braking system, steering system, control system and so on.

Aircraft Tow Tractor maximum towing capacity can be 150TON that makes it is able to provide towing service for the aircraft such as B757, B737, B727, B717, A320, MD-90, MD82, TU154 and other narrow body or small size aircraft.

IATA AHM 905 Civil Airport Support Equipment Reference

IATA AHM 910 Airport Ground Support Equipment Basic Requirement

IATA AHM 913 Airport Ground Support Equipment Basic Safety Requirement

IATA AHM 915 Standard Control

MH/T6017-1999 Aircraft Towing Tractor

Aircraft Tow Tractor Technical specifications

Max. Traction Value: 120KN

Max. Towing capacity: 200T

Gross weight: 16,000KG

Length: 4800mm (without towing assembly)/5360mm(with towing assembly)

Width : 2100mm(with rear view mirror)

Height: 2020mm

Wheelbase: 2150mm

Ground Clearance: 200mm

Turning Radius: 5800mm (two wheel) , 3400mm (four wheel)

Max. Speed: 28 Km/h

Drive method: hydraulically mechanical transmission, double axle four wheel driving.

Braking: hydraulically, two-way, accumulator pressure maintaining
