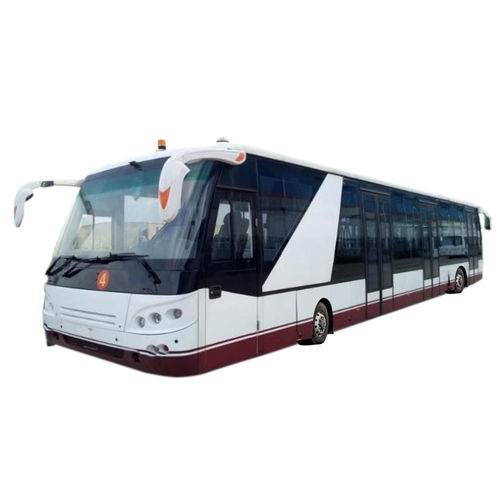

Tianyi TY-B6300 Airport shuttle bus

Passenger cabin of Tianyi TY-B6300 Airport shuttle bus

The passenger cabin of the Tianyi TY-B6300 airport shuttle bus is a large-capacity compartment. The floor is on the same plane. The entire passenger cabin height is 2.42 meters, which increases the standing space of the passenger cabin inside. The passenger cabin is equipped with 14 seats, and its rated passenger capacity is 112 people (4 people standing per square meter).

2) To facilitate passengers' quick and safe boarding and alighting, three extra-wide pneumatic doors are installed on each side of the passenger cabin to ensure the smooth passage of two passengers simultaneously.

3) On both sides of the front door of the cabin, there are special facilities for the disabled to get on and off wheelchairs. At the same time, two areas for fixing wheelchairs and devices for wheelchair passengers to hold onto are set up in the cabin. When wheelchairs are not available, they must not interfere with the riding of ordinary passengers

4) All the doors in the passenger area are operated and controlled by the driver. The switches are set on the dashboard in the driver's cabin. The control buttons can be set as 2 master control switches and 6 sub-control switches. When the doors are not closed, they send light or sound signals to the driver, providing a new technical measure to ensure passenger safety.

5) The pneumatic pipeline (pipe) for the car door adopts the well-known brand Hebei Yada nylon pipe. There are no additional joints in the middle of the pipeline to ensure stable airway pressure and no leakage.

6) The solenoid valves and door pumps used in the passenger door system adopt well-known brands, with stable and reliable performance.

7) The passenger door system is equipped with emergency opening switches and operation signs both inside and outside the cabin.

8) The passenger door system is equipped with manual rotation and pin safety locks, which are locked in harsh environments (such as strong winds or typhoons) to ensure that the passenger cabin is not eroded by the external environment.

9) The pneumatic passenger door (aluminum alloy profile frame) features:

a) Automatic anti-pinching function, which can quickly react and bounce away when passengers are pinched, avoiding the risk of people being pinched and injured. During the driving process, it is equipped with a uniquely designed automatic door pop-up protection function to ensure the safety of passengers during driving.

b) Vehicle start protection function: The vehicle cannot start driving when the passenger door is not fully closed.

c) Passenger door self-locking function: When the vehicle speed exceeds 3km/h, the vehicle speed signal and the passenger door linkage signal will take effect, and the passenger door will be in a self-locking state.

d) Passenger door forced release function: When the passenger door malfunctions and cannot be opened normally, the forced release switch can be pressed on the dashboard of the driver's cabin.

10) The shuttle bus is equipped with a safety interlock device: when the passenger door is open or not fully closed, and the gear shifts from neutral (N) to drive (D) or reverse (R), the control system will not perform the gear shift action. At this time, the gear should be shifted to neutral, the door closed, and then the vehicle can proceed. In case of a passenger door malfunction and the vehicle needs to be sent for repair with the door open (the vehicle must not carry passengers), press the red "Interlock Release" button on the dashboard to release the interlock. After the fault is repaired, the "Interlock Release" button should be reset to restore the interlock, which greatly enhances the operational safety.

11) The side window glass of the vehicle body is an integrated bonded tempered safety glass with a thickness of 5mm. Each side is equipped with two sliding Windows, which play a role in ventilation and cooling before the air conditioner is used in summer, and have a high utilization rate.
