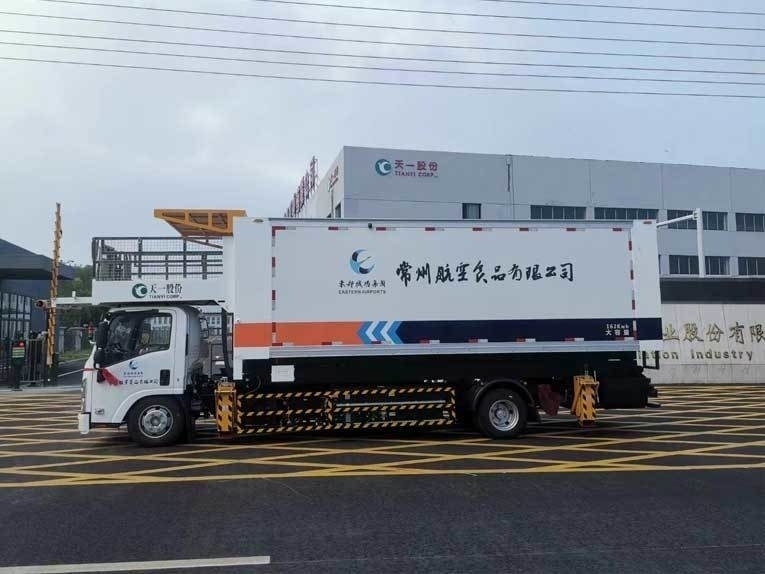

Electrical systems of Aircraft Cleaning and Catering Trucks

Electrical systems of Aircraft Cleaning and Catering Trucks

Electrical systems of Aircraft Cleaning and Catering Trucks adopt a total power of 162kWh and is composed of the control box in the driver's cabin, the box operation box, the ground operation box, the electrical box, etc. The relay logic control circuit is used to concentrate all the relays on the printed circuit board of the electrical box to raise and lower the box body. The release and retraction of the supporting feet; The functions such as platform movement and extension are interlocked. The ground operation box is equipped with box body lifting and lowering. Support foot release and retraction buttons and indicator lights, etc. The operation box inside the box is equipped with the lifting and lowering of the box. Platform movement, telescopic buttons and indicator lights, etc.

2. A protection circuit for the platform extension is set up. When the sensor senses an object, the control circuit for the platform extension is cut off to stop the platform from extending.

3. Set up the emergency shutdown circuit for starting and the control circuit for using the emergency electric pump, and set up the support foot indicator signal. Both relays and switches adopt well-known brands. Electrically controlled hydraulic operation console, lighting electrical switch, emergency stop switch.

Configuration II Technical Parameters of Aircraft Cleaning and Catering Trucks

Driving motor model: TZ370XS-LKM1201

Model of the driving motor controller: KTZ54X38S-LKC1201

Energy storage device assembly model: L150TX8

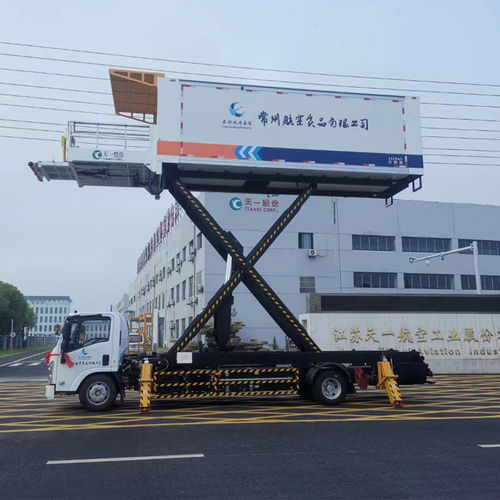

Platform working height (mm) : 2150-6000

Rated load of the box body (kg) : 3800

Rated load of the front platform (kg) : 2200

Rated load (kg) of the movable part of the front platform: 600

Left and right adjustment range of front platform active part (mm) : 0 ~ 500

Front platform active part expansion adjustment range (mm) : 0 ~ 600

Size of fixed part of front platform (length × width) (mm) : 1900×2085

The dimensions of the movable part of the front platform (length × width) (mm) : 820×1200

Curb weight (kg) : 10,600

Overall dimensions (length × width × height) (mm) : 9450×2300×3400

Range (km) : 285

Chassis model: QL1103BEVEYMAY

External dimensions of the box body (length × width × height) (mm) : 6600×2300×2100

Rated load (kg) of the fixed part of the front platform: 1600

Total energy storage device (kWh) : 162.28
