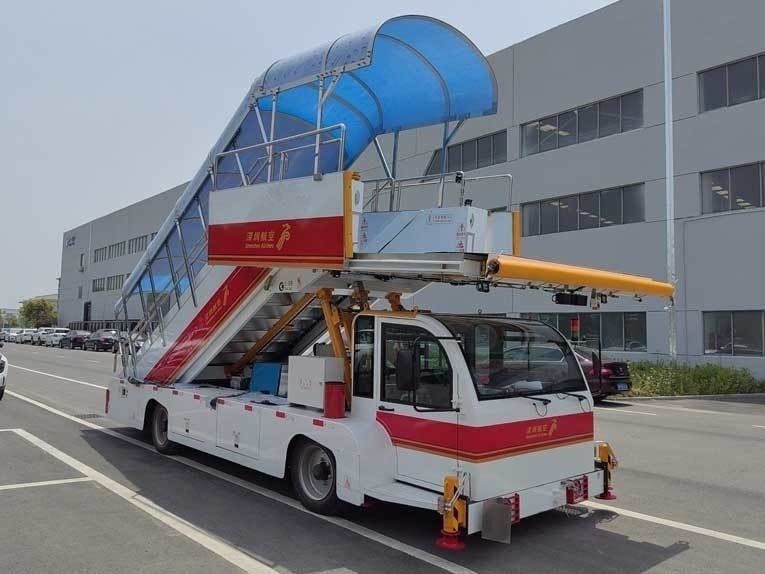

Fixed ladder back end by a shaft connected to the chassis, the front through the lifting mechanism connected with the chassis; The telescopic extension of the lifting mechanism can adjust the Angle between the ladder body and the horizontal. The sliding ladder is composed of a fixed platform, a front telescopic platform, side panels and a ladder. It is connected to the fixed ladder through pulleys. The telescopic movement of the liquid cylinder drives the sliding ladder to slide along the guide rail, achieving height changes of the platform.

To enhance the structural strength and take into account the particularity of the structure, the main frame of the ladder frame is made of channel steel.

The side panels adopt a new type of stainless steel frame structure, which is novel and beautiful. Under the condition of ensuring the structural strength and rigidity, it greatly reduces the weight of the structure. A stainless steel handrail is installed on the upper part of the side rail.

High-brightness, energy-saving and reliable LED soft light strips are adopted to provide lighting

Buffer rubber cylinders are installed at the front end of the platform and the front end of the platform's movable side rail.

2. The stair treads and platforms are made of specially designed anti-slip aluminum alloy profiles.

3. The telescopic extension of the lifting mechanism can adjust the Angle between the ladder body and the horizontal, and it has a fine-tuning function

Self-Propelled Passenger Stairs Electric is equipped with six main technical parameters

Driving motor model :HCDM030HP2

Model of driving motor controller :HC30LKPIC-K21-V1-TY

Model of the energy storage device assembly :L173G01

Maximum tilt Angle (°) :38.5

Step dimensions (depth × width × height) (mm) : 285×1500×192

Passenger elevator working height (mm) :2150 ~ 5800

Height adjustment method: Telescopic type for the upper and lower ladder bodies

Number of steps on the upper ladder :12

Number of steps on the lower ladder: 15

Platform dimensions (depth × width) (mm) :3300×2200

Overall dimensions (length × width × height) (mm) :7990×2400×4900

Curb weight (kg) :7700

Endurance (km+ times) for small airports :152+76

Large airport :151+74

Medium-sized airport :151+75

Other features: 1. Optional cab; 2. Semi-enclosed awning

Chassis model :JSTY5080KTE-1000000

Hydraulic motor model :HCDM007MG1

Hydraulic motor controller model :HCDM007CL1

Total energy storage device (kWh) :90.24
