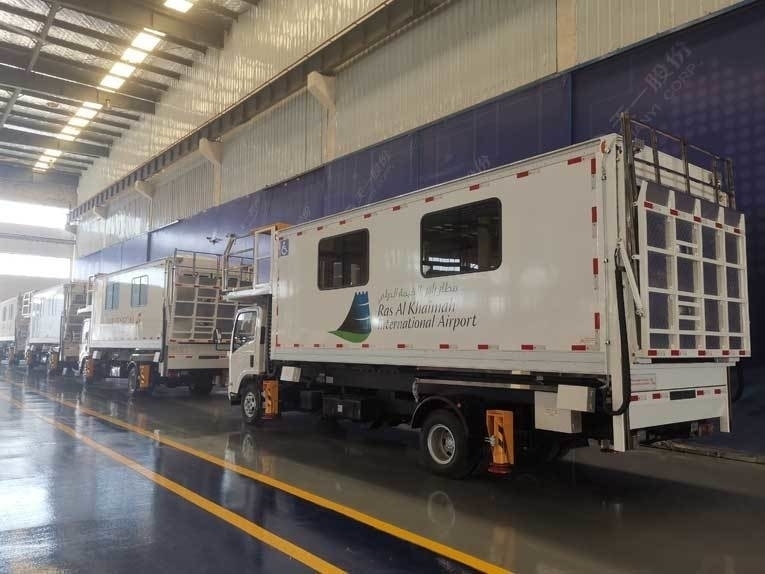

Aircraft Ambulift Truck Diesel

Aircraft Ambulift Truck Diesel Performance Overview

WTJ5100JCR ambulift truck is equipped with Qingling Class II automotive chassis modification, which is technologically advanced, safe and reliable to use, and has better performance than similar products modified with other domestic chassis.

Apply to aircraft A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, B787, DC8, 1L-18, 1L-62, MD11, MD80.

The main features of the product are as following:

a. Aircraft Ambulift Truck chassis adopts Qingling Class II chassis, with strong load-bearing capacity and good maneuverability. The hydraulic system uses Youyan directional valves, Zhonglong oil filters, etc. The oil cylinder uses the best domestic products, and key vulnerable components such as the oil seal inside the oil cylinder are all imported parts. The electrical system is also treated similarly.

b. Complete emergency measures are required to ensure the safety of ambulift truck.

c. The electrical system is well-designed with complete functions, which can effectively prevent various misoperations, ensure personal safety, and prevent equipment damage.

d. Adopting integrated circuit board and relay combination control, the control system is advanced and reliable.

Aircraft Ambulift Truck Diesel is configured with seven parameters

Engine model: 4HK1-TCG61

Platform working height (mm) : 2500-5800

Rated load of the box body (kg) : 2500

Rated load of the fixed platform (kg) : 1200

Rated load of the movable platform (kg) : 600

The left and right adjustment range of the platform (mm) : 0-600

Platform telescopic adjustment range (mm) : 0-600

Fixed platform dimensions (length × width) (mm) : 1835×2290

Mobile platform dimensions (length × width) (mm) : 910×2170

Curb weight (kg) : 10,500

Overall dimensions (length × width × height) (mm) : 8930×2460×3700

Chassis model: QL1110ANPAY

Engine emissions: The emissions meet the requirements of Stage 6b in the sixth stage of China as stipulated in GB 17691-2018, and the exhaust smoke intensity meets the requirements of GB 3847-2018

Body dimensions (length × width × height) (mm) : 6500×2300×2300

Transmission model: Allison1000
