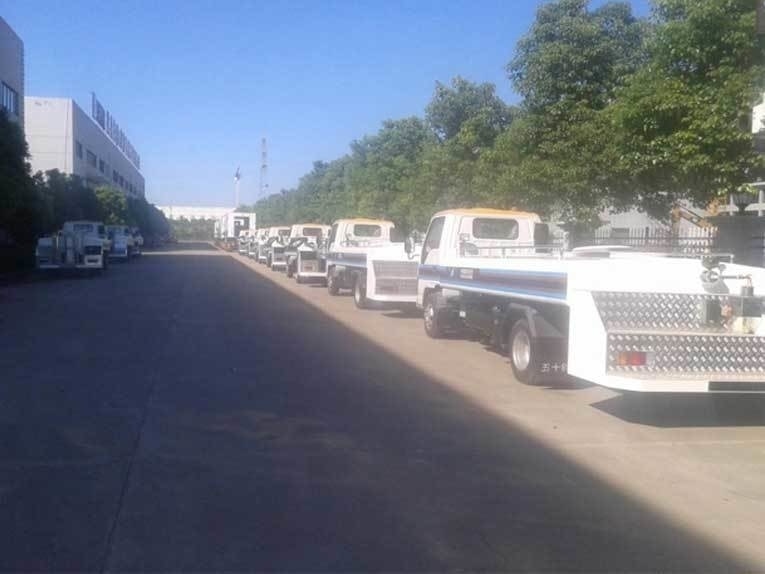

Lavatory Service Vehicles

The hydraulic motor of Lavatory Service Vehicles drives the vacuum pump to evacuate the sewage. The vacuum pump model is 2BV2771, generating a certain negative pressure inside the box. When the aircraft sewage pipe joint is connected, the aircraft sewage valve is opened, and the vacuum pump switch is turned on, the aircraft sewage tank can be quickly and clean sucked. Vacuum drainage, on the one hand, improves work efficiency; On the other hand, it can ensure that sewage will not seep out from the pipe joints to avoid pollution to the airport environment and staff.

Note: When the vacuum pump is damaged or the vacuum suction function is not needed, do not turn on the vacuum pump. The dirt can be discharged by self-flow.

The three-way ball valve at the upper end of the water ring vacuum pump in the pump room is connected to the vacuum pump and is in the normally open state, while the other end is the water discharge port and is in the normally closed state. When it is necessary to drain the circulating water in the circulating water tank, the ball valve in the water discharge section is in the open state.

Lavatory Service Vehicles configuration VII parameters

Engine model: 4KH1CN6LB

The volume of the clear water tank (L) : 1400

Sewage tank volume (L) : 2360 (with vacuum pump) /2600 (without vacuum pump)

Water supply flow rate (L/min) : ≥150

Water supply pressure (MPa) : 0.345

Curb weight (kg) : 4060

Overall dimensions (length × width × height) (mm) : 7190 (without rear storage box) /7440 (with rear storage box) ×2100×2260

Maximum speed (km/h) : 80

Other performance options: vacuum pump and rear storage box

Chassis model: QL1070BUKAY

The lifting height of the working platform (mm) : 385-3760

The outer diameter of the channel circle (mm) : 15000

Engine emissions: Exhaust pollutants meet the emission limits for stage 6b in GB17691-2018, and exhaust smoke meets the requirements for Stage a of free acceleration in GB3847-2018.

Circulating water tank volume (L) : 240 (with vacuum pump) /0 (without vacuum pump)

Transmission model: MSB-5SM
