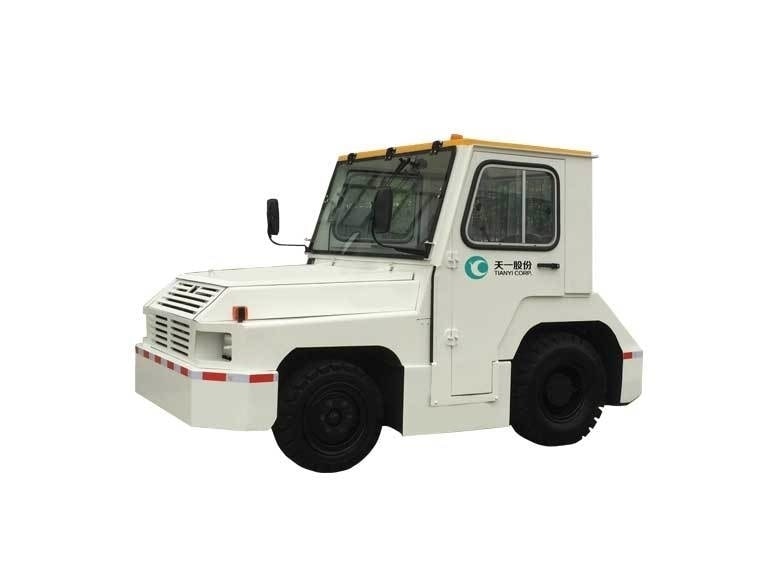

30KN Aircraft Tow Tractor

30KN Aircraft Tow Tractor

30KN Aircraft Tow Tractor is composed of body system, power system, transmission system, steering system, braking system and electrical system. The crew consists of 2 people. The maximum speed is 28km/h, the maximum hook traction force is 30kN, the rated traction mass is 39 tons, and the minimum turning diameter is 5,950 mm.

30KN Aircraft Tow Tractor Advantages

The rectangular structure frame endows the vehicle body with strong rigidity, providing better stability and safety during towing.

The hydraulic power steering and circulating ball power steering system significantly reduce steering resistance, making the steering flexible and accurate, and allowing the operator to feel convenient and at ease even when making sharp and rapid turns.

It adopts an imported independent front suspension, featuring a small turning radius, good stability and comfort, and a low failure rate.

The large-capacity plate-fin radiator features a large heat exchange area and high heat dissipation efficiency.

All the instruments and warning lights are concentrated on the instrument rack, making the vehicle's condition clear at a glance. The dashboard is equipped with a chronograph, brake level warning light, engine water temperature gauge, engine oil pressure warning light and fuel level

The front drum and rear disc dual-circuit service brake not only makes braking light but also enhances braking reliability, enabling the shortest braking distance even during towing operations.

The central drum mechanical parking brake has a good parking braking effect and requires a small operating force.

The electronic gearshift handle of the anti-jump gear is extremely easy to operate. The operator no longer needs to be distracted by gear shifting and can focus solely on operating the steering wheel.

The two-stage towing bolt mechanism enables the height of the towing device to be easily adjusted by manipulating the joystick beside the driver's seat to adapt to different types of trailers.

Technical parameters of 30KN Aircraft Tow Tractor

Total length (mm) : 3180/2950

Total width (mm) : 1490

Total height (mm) : 2180 (including the cab)

Shaft distance (mm) : 1620

Wheel distance to the front wheel (mm) : 1275

Rear wheel mm: 1230

Front overhang mm: 690

Rear overhang mm: 640

Minimum ground clearance in mm: 150

Minimum turning diameter (mm) : 5950

Maximum speed (empty load/full load) km/h: 28/13

Curb weight (kg) : 4210

Front axle load-bearing capacity kg: 1280

Rear axle load-bearing capacity kg: 2930

Total mass (kg) : 4340

Rated traction mass kg: 39,000

Maximum traction force kN: 30

The height of the traction bolt center from the ground (front/back) mm: 20/80
