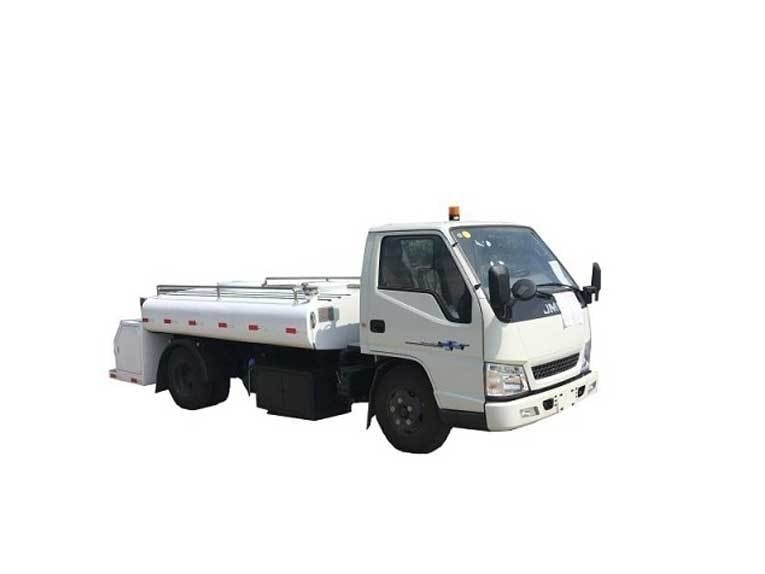

Aircraft Clean Water Truck (Diesel Type)

Aircraft Clean Water Truck (Diesel Type)

Aircraft Clean Water Truck (Diesel Type) Jiangling JX1061TG25 National V Manual Transmission Class II Chassis, the company has made partial modifications according to product design. The rear end of the main beam is welded with a work platform frame. On the left side of the platform frame is a ladder, which is used for workers to walk on the tank for maintenance and sanitation cleaning. On the right side of the platform frame is a clean water pipe conveying device. On the right side of the main beam, there is a water pump, inlet pipe, hydraulic pump, and hydraulic accessories. On the left side of the main beam, there is a diesel tank and hydraulic oil tank.

Aircraft Clean Water Truck (Diesel Type) is designed as a rear mounted lifting platform with a large capacity water tank in the middle. The chassis cab of this product is a flat head, single row seat, two door type, with two passengers; The driving type is 4 × 2, and the capacity of the clean water tank is 4.0m ³, The maximum flow rate of clean water supply is>130L/min.

Aircraft Clean Water Truck (Diesel Type) technical parameters

verall dimensions of the vehicle(length x width x height): 6530×1900×2150

External dimensions of the container(length x width x height) :3200×1900×760

Clear water tank capacity :4000L

Chassis Model: JX1061TG25

Engine model :JX493ZLQ5

Vehicle curb weight: 2950kg

Front axle load (unloaded/fully loaded) :1040kg / 1140kg

Rear axle load (unloaded/fully loaded): 1910kg /3910kg

Total water tank weight when fully loaded :6950kg

Fuel consumption per 100 kilometers: ≤12L

Outer diameter of the channel circle: 14000 mm

Departure angle: 11°

Approaching angle: 24°

Ground clearance :205mm

Clear water supply pressure: 0.345MPa

Hydraulic system working pressure :10MPa

Hydraulic oil tank capacity :78L

Hydraulic oil model: 32#Aviation ground hydraulic oil

Diesel tank capacity 100L

Tire Size: 7.00R16

Voltage: 12V(Two batteries connected in series)
