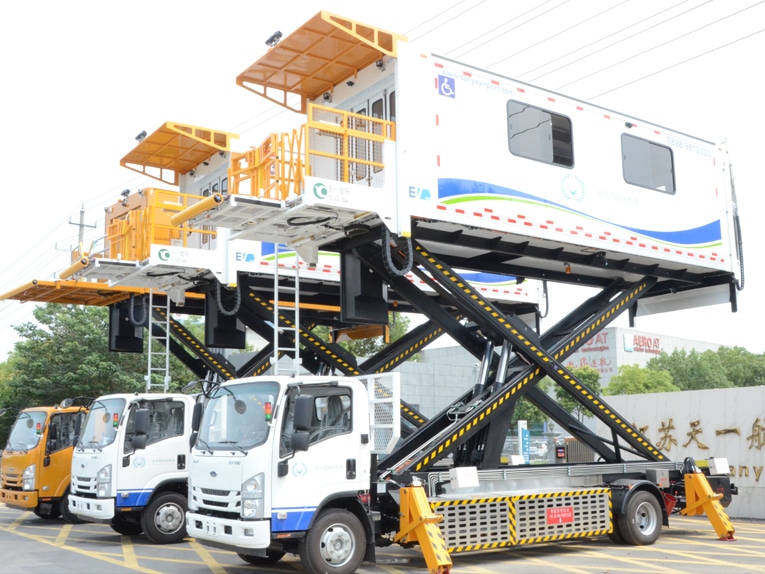

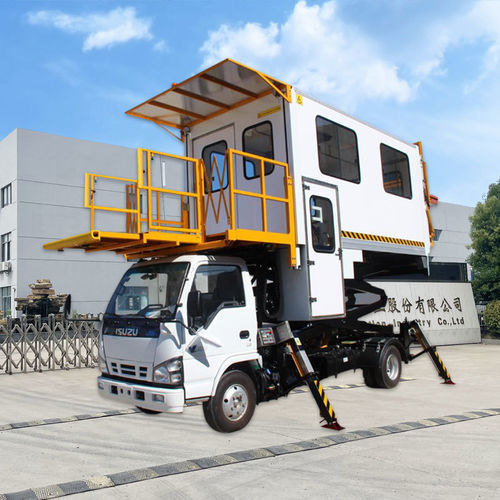

Battery powered Ambulift front work platform

Battery powered Ambulift front work platform

Battery powered Ambulift front work platform

The work platform is composed of three major parts: the fixed platform, the left-right mobile platform and the front-back telescopic platform.

2) The external dimensions of the platform are as follows:

Fixed platform (length × width, mm) : 1900×2085, load-bearing capacity 1400kg.

② Left-right moving platform (length × width, mm) : 830×1200, load capacity 600kg, stroke 0-500mm.

③ Front and rear telescopic platform (length × width, mm) : 600×1075, stroke 0-600mm.

3) There are more than two spotlights with a power greater than 55W on the work platform for illumination, and they are installed on both sides of the front end of the carriage.

4) Circular anti-collision rubber cylinders are installed at the front and rear telescopic platforms near the aircraft end.

5) Rotating guardrails are installed on the left and right moving platforms.

6) On the rotating guardrail, there are front and rear telescopic guardrails, and D-shaped yellow anti-collision rubber hoses are installed on the telescopic guardrails.

7) The left and right movement and forward and backward extension of the platform are standardly equipped with hydraulic cylinders, and an electric push rod type is optional.

8) The platform is paved with 6mm aluminum alloy patterned aluminum plates.

9) The platform is equipped with no-reliance and platform load-bearing indication signs.

10) According to the customer's requirements, stainless steel protective nets can be installed on the platform guardrails.

Technical parameters of Battery powered Ambulift

Platform working height (mm) : 2250-6000

Box body rated load ㎏ : 3000

Platform expansion adjustment range mm: 0 ~ 600

Fixed platform dimensions (length × width) mm: 2300×2085

Box size (length × width × height) ㎜ : 7000×2300×2300

Fixed platform rated load kg: 1200

Rated load capacity of the activity platform kg: 800

Overall dimensions (length × width × height) : 9780×2300×3700

Post lifting platform rated load kg: 500

Curb weight kg: 11180

Minimum ground clearance mm: 200

Minimum turning diameter m: 20,000

Rise and fall time of box body S: 70/55

Foot support contraction time S: 15

Platform scaling time S: 8/6

Allows working wind speed J: 8

Maximum speed km/h: 80

Approaching aircraft speed km/h: ≤2

Maximum working pressure Mpa: 15
