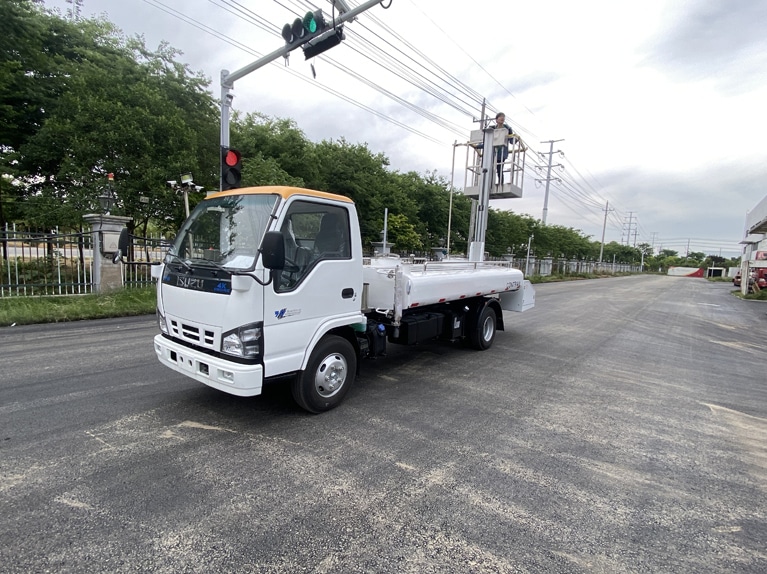

Aircraft water truck (600P) water supply system

Aircraft water truck (600P) water supply system

Aircraft water truck (600P) water supply system

The water pump is installed at the lower right front end of the box, directly connected to the water tank outlet. The water pump adopts a stainless steel centrifugal pump and is driven by a hydraulic motor. All the water pumps are made of stainless steel and are equipped with mechanical seals. A drain plug is installed at the lowest point of the water pump. A safety pressure regulating valve is installed in the water pipeline system, which can adjust the water pressure during water supply according to actual usage (under normal working conditions, the water supply pressure is 0.25Mpa to 0.40Mpa).

The clear water hose is a food-grade delivery hose. At the end of the outlet pipe, there is a water filling connector that can be quickly connected to the aircraft's water filling port. On the working platform in the middle of the water supply pipeline, there is a stop valve to control the backflow and flow rate of water in the water supply pipeline. An electronic turbine flowmeter is installed in the pipeline, which enables convenient observation of the water volume and flow rate each time water is added.

Aircraft water truck parameters

Engine model: 4KH1CN5HS

tank volume (L) : 4000

water supply flow rate (L/min) : ≥150

water supply pressure (MPa) : 0.345

curb weight (kg) : 4160

overall dimension (length, width and height) (mm) : 7265x2140x2295

top vehicle speed (km/h) : 80

other performance: Optional lift platform

Chassis model: QL1070A5KAY

lift height of the lifting platform (mm) : 380-3740

water box material/thickness (mm) : S31603/4.5mm

outer circle diameter of the channel circle (mm) : 17000

engine emissions: Exhaust pollutants meet the limit requirements of GB 17691-2005 stage V; exhaust smoke color meets the requirements of GB 3847-2005.
