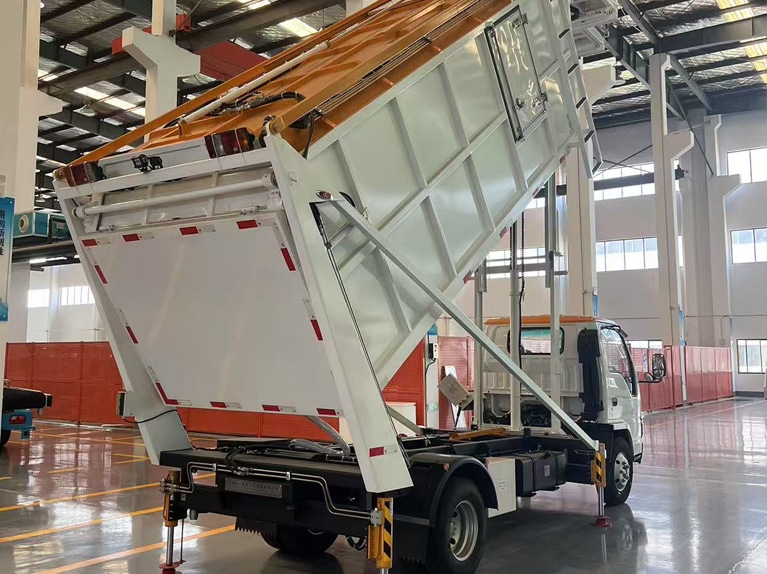

Diesel Garbage Trucks lifting gantry is composed of external gantry frame, internal gantry frame, lifting frame, lifting cylinder, chain and height meter, etc. The inner gantry and external gantry are equipped with rollers. The outer mast is connected to the bottom frame of the chassis by pins, and the lifting frame is connected to the garbage bin body by pins. The lifting cylinder serves as the actuating element, with rollers arranged on both sides of its upper part. The outer frame and the lifting frame are connected by roller chains. When the lifting cylinder performs hydraulic action, the roller chain rolls on the rollers. At this time, the rollers act as movable pulleys, thereby achieving the lifting and lowering of the body by twice the stroke of the cylinder.

Diesel Garbage Trucks parameters

Chassis model: QL1070BUKAY

garbage bin capacity (m3) : 16.5

allow the loading of garbage mass (kg) : 1900

platform working height (mm) : 2200-5800

front platform expansion range (mm) : 0-800

maximum flipping angle of garbage bin (°) : 35

overall dimension (length, width and height) (mm) : 7985×2260×3500

curb weight (kg) : 5500

engine model: 4KH1CN6LB

engine emissions: Exhaust pollutants meet the limit requirements of GB 17691-2018 stage VI; exhaust smoke color meets the requirements of GB 3847-2018.

Transmission model: MSB-5SM
