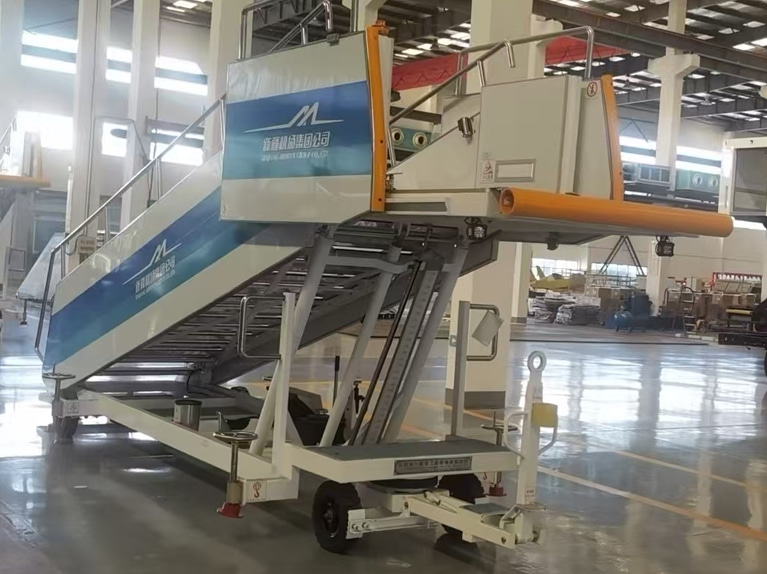

Passenger Stairs (hand-pushed)

Passenger Stairs (hand-pushed)

The passenger boarding ladder as hand push type passenger boarding ladder. Because it is a self-made chassis and has no engine, the cost of purchasing the car is low. Because there is no need to refuel, the usage cost is reduced. Because all the functions are operated manually and the failure rate is low, the maintenance cost is low. The hand-pushed passenger boarding ladder has the advantages of being noise-free, pollution-free and safely connected to the aircraft cabin door.

Passenger boarding ladder (hand push type) chassis assembly is mainly composed of chassis welding assembly, rear axle, turntable assembly, traction steering mechanism, leg assembly, parking brake handle, battery, etc. The underframe welding assembly is made of 120x60x3 rectangular steel pipes welded into one piece, and the four wheels are heavy-duty solid rubber tires. The boarding ladder is equipped with a traction rod for pushing and pulling. The traction rod stands upright in its natural state, and the hand-cranked support legs are located around the base frame. When in operation or parking, the support legs need to be lifted.

Parameters of the passenger boarding ladder (push-type)

stair maximum tilt angle (°) : 38

Step size (DxWxH) (mm) : 300×1120× (140-200)

stair working height (mm) : 2025-3440

height adjust mode: Ladder parallel-sided shift type

mobile stair steps number: 18

platform size (Depth X Width) (mm) : 2000×1400

overall dimension (LxWxH) (mm) : 7000×2100×3250

unladen weight (kg) : 1980

turning diameter,outside (mm) : 9400

other performance: 6km/h/Optional rain canopy; optional solar panels; can charge the battery; top speed 6 km/h

chassis model: WTJ3600TKT-090000
