TYPTL-14T Container Cargo Loader (Diesel)

TYPTL-14T Container Cargo Loader (Diesel)

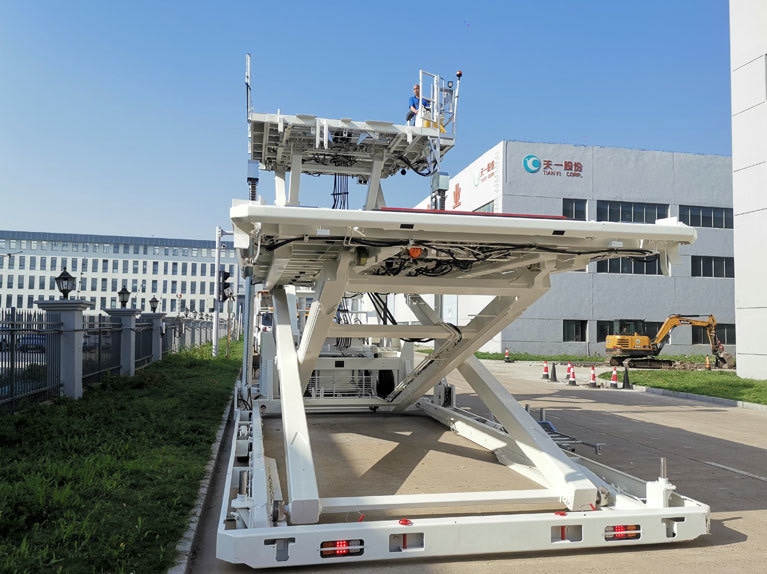

TYPTL - 14 t container cargo loader (diesel) mainly consists of chassis, the main platform, bridge platform and manipulation of the platform, the lifting mechanism, hydraulic system, electrical system and other parts. The underframe is a rigid frame structure, and the lifting and lowering device adopts a scissor support structure, with the lifting action achieved by hydraulic cylinders. The main platform and bridge platform are equipped with steel rollers, rubber rollers and universal casters, and are driven by hydraulic motors to complete the transportation of containers/pallets. The control platform is on the right side of the bridge platform. The front drive wheels are driven by hydraulic motors and are equipped with braking and steering devices. The engine selected is the TCD 2.9L4 HT type engine produced by DEUTZ AG, which provides power for the vehicle to move and operate independently. The lifting capacity of the main platform is 15,000 kg, that of the bridge platform is 14,000 kg, the maximum speed is 14km/h, and the transmission speed of both the main platform and the bridge platform is 0.3m/s.

TYPTL - 14 t container cargo loader (diesel) experience in design, manufacture and in strict accordance with the following standards:

IATA AHM910 Basic Requirements for Aviation Ground Equipment

IATA AHM913 Basic Safety Requirements for Aviation Ground Equipment

IATA AHM915 standard control device

Functional requirements of IATA AHM930 Lower Cargo Hold Platform Truck

Functional Requirements of IATA AHM931 Main Cargo Hold Platform Truck

IATA AHM932 Main Platform (Platform Truck) Container and Stacker Crane Function Specification

IATA AHM933 Specification for Power Function of Platform Truck/Container/Pallet Unit

IATA AHM924 Functional Specification for Large Cargo Lifting Platform

GB/T 23420 Functional Requirements for Wide-body Aircraft Lower Cabin Containers and Container Plate Loaders

GB/T 23421 Basic Requirements for Aircraft Loading Equipment

GB/T 23423 Functional Requirements for Wide-Body Aircraft Main Cabin Containers and Container Plate Loaders

AC-137-CA-2019-05 Specification for Inspection of Containerized Cargo Aircraft

AC-137-CA-2020-01 Safety Technical Requirements for Aircraft Ground Service Equipment Docking

EN 349 European Standards for Avoiding the risk of Human crush

Pr EN 1915.1 European Trial Standard for Ground Vehicles

Pr EN 1915.2 European Trial Standard for Ground Vehicles

Pr EN 12312.9 European Trial Standard for Cargo Platform Trucks

European mechanical standard EN 292.1-2

EN 294 European safety standards for the upper part of the human body

EN 1915-1:2001 General Requirements for Aviation Ground Support facilities - Basic Safety Requirements 1

EN 1915-2:2001 General requirements for aviation ground support facilities - Part 2 Stability, strength requirements

Calculation and testing

EN1915-3:2004 General Requirements for Aviation Ground Support facilities - Part 3 Methods of vibration measurement

EN 1915-4:2004 General requirements for aviation ground support facilities - Part 4: Methods of noise measurement

GB 4785 Quantity, Location and light color of external lighting and signal devices for motor vehicles and trailers
