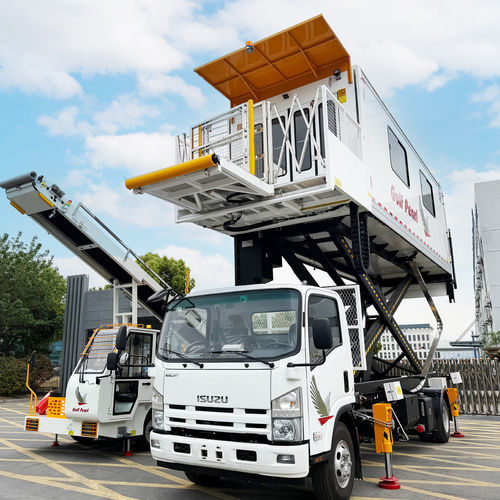

WTJ5100JCR Airport ambulift (Diesel) is suitable for all types of aircraft with the height of the aircraft door between 2500 ~ 5800㎜, and the boarding car for passengers with mobility difficulties is mainly made of: Automobile chassis, support foot assembly, lifting fork frame assembly, trunk assembly, front and rear platform assembly, hydraulic system and electrical system, etc., and for the mobility of passengers boarding the car, off the plane service.

Airport ambulift (Diesel) chassis

1, choose Qingling 700P Class II car chassis (QL1100A8PAY)

2. Engine model: 4HK1-TC51

Maximum power: 141kw/2600/min

Maximum torque: 513Nm/1600r/min

Type: Water-cooled, supercharged, intercooled, four-stroke diesel engine

Emission standard: National V standard

Transmission; Six gears forward, one back

I: 6.720; II: 4.244; III: 2.580; IV: 1.540; V: 1.00; Ⅵ : 0.763; R: 6.823

3, using hydraulic power steering system.

4. Double circuit hydraulic brake system is adopted.

5, Qingling QL1100A8PAY (700P) Class II car chassis, stable performance, beautiful appearance.

6. When the platform is raised, the vehicle cannot move.

Overall dimensions (length × width × height) : 9540 mm×2460 mm×3770 mm

Interior dimensions (length × width × height) : 6350 mm×2200 mm×2100 mm

Telescoping distance: 600 mm

Mobile platform moving distance: 600 mm

Ground height of front platform: 2500mm-5800mm,

Body lifting height from floor: 1420-5800mm

Height of rear platform from ground: 50 mm to 1420mm

Wheelbase: 5200 mm

Approach Angle: 14°

Departure Angle: 14°

Channel circle diameter: 20500mm

Vehicle weight: 11250kg

Maximum load: 2500kg

Maximum load of front platform: 1200kg

Maximum load on rear platform: 500kg

Allowable working wind speed: Level 8

Maximum speed: 75 km/h

Approaching aircraft speed ≤3 km/h

Maximum working pressure: 16 Mpa
