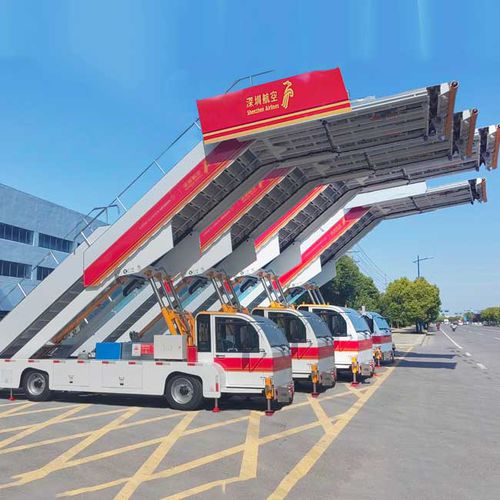

Self-propelled Electric Universal Passenger Step Main performance indicator Set six

Driving motor: HCDM030HP2

Travel motor controller: HC30LKPIC-K21-V1-TY

Energy storage device assembly: L173G01

Maximum tilt Angle of ladder body (°) : 38.5

Step dimension (depth × width × height) (mm) : 285×1500×192

Passenger elevator working height (mm) : 2150 ~ 5800

Height adjustment mode: up and down ladder body telescopic

Number of steps on the ladder body: 12

Number of stairs: 15

Platform dimension (depth × width) (mm) : 3300×2200

Overall dimensions (length × width × height) (mm) : 7990×2400×4900

Maintenance weight (kg) : 7700

Endurance Small airport (km+ times) : 152+76

Endurance Large airports (km+ times) : 151+74

Endurance Medium airport (km+ times) : 151+75

Other performance: 1, optional cab; 2. Semi-closed awning

Chassis: JSTY5080KTE-1000000

Hydraulic motor: HCDM007MG1

Hydraulic motor controller: HCDM007CL1

Total energy of energy storage device (kWh) : 90.24

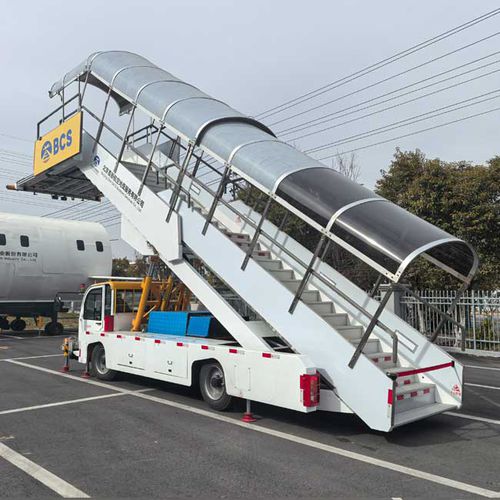

JSTY5080KTE Self-propelled Electric Universal Passenger Step is equipped with a widened chassis and 4 leg cylinders to stabilize the chassis. The current high safety factor of lead-acid colloid maintenance-free battery is used to provide electric drive, hydraulic drive to adjust the height of the platform, automatic control to simplify the operation process; Highly efficient anti-touch sensors ensure safe docking with the aircraft.
