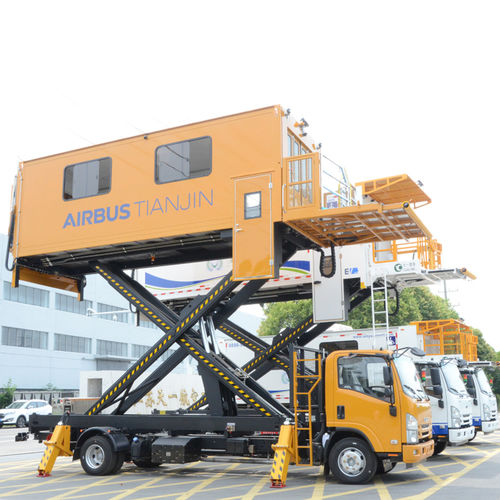

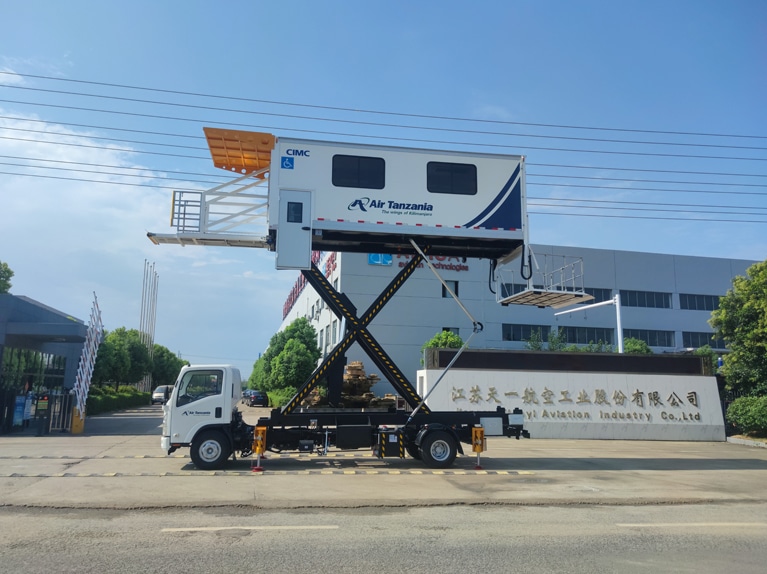

Ambulift Half Cab hydraulic system

Ambulift Half Cab hydraulic system

Ambulift Half Cab hydraulic system

The hydraulic system is composed of power take-off, oil tank, gear oil pump, electric pump, manual pump, solenoid valve, hydraulic cylinder, etc. The actions of each hydraulic cylinder are controlled by the electrical system to achieve various functions of the vehicle.

2. The main power is provided by a gear pump. The engine operates to drive the power take-off, and the output shaft of the power take-off drives the oil pump, causing it to work and output the working oil.

3. Emergency operation should be carried out using a hand-cranked hydraulic pump.

4. The main hydraulic components adopt imported well-known brands from Europe and America.

5. The four hydraulic support feet are reasonably set up, and the lifting weight is greater than the total mass.

6. The lifting cylinder is equipped with a check valve and a low-position limit valve, and is also fitted with a hydraulic lock. The feet of the hydraulic cylinder are equipped with hydraulic locks.

7. Hydraulic pipe materials should be made of metal in all areas except the moving parts.

8. Hydraulic control: The hydraulic control and oil circuit control for the lifting of the rear platform and the body must be independently arranged (i.e., the control components for the above control actions and the hydraulic pipeline control are not shared), and the hydraulic output should be reasonable.

Ambulift Half Cab parameter

Dimensions (length × width × height) : 9200mm× 2460mm × 3770mm

Internal dimensions of the box body (length × width × height) : 6350 mm×2200 mm×2100 mm

The telescopic distance of the telescopic platform is 600 mm

Mobile platform moving distance: 600mm

Front platform height from ground: 1400mm - 5800mm

The lifting height of the box body from the floor: 1500-5900mm

The height of the rear platform from the ground: 0mm - 1500mm

Wheelbase: 5200mm

Approach Angle: 14°

Departure Angle: 14°

The outer diameter of the channel circle: 20,500mm

Overall vehicle weight: 11,250 kg

The maximum load capacity of the box body is 2,500 kg

Maximum load capacity of the front platform: 1200kg

The maximum load capacity of the rear platform is 500kg

Allowable working wind speed: Level 8

Maximum speed: 75 km/h

When approaching an aircraft speed of no more than 3 km/h

Maximum working pressure: 16 Mpa
