passenger stairway boarding platform

passenger stairway boarding platform

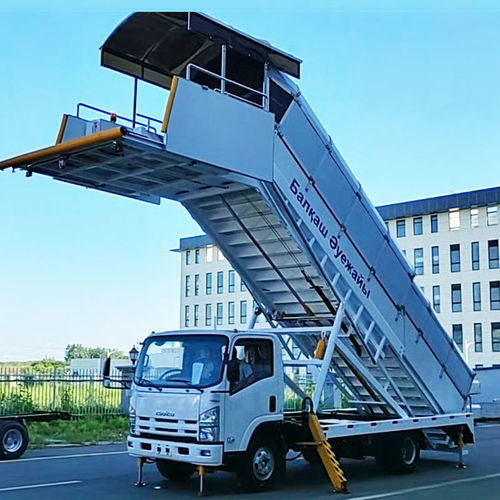

WTJ5060JKT passenger stairway boarding platform

The boarding platform is a component directly in contact with the aircraft, consisting of a fixed platform, a telescopic platform, a sliding side door and a telescopic oil

The cylinder is composed of rigid connection with the upper part of the elevator. In order to ensure the safety of the platform near the aircraft, electrical appliances are installed at the front of the platform

The limit switch allows the platform to stop automatically and reliably near the ideal position of the aircraft. The telescopic platform can swing from side to side,

When the docking between the passenger ladder car and the aircraft door is not vertical, the error between the platform and the door can be automatically adjusted. Sliding side doors are used

Adjust the gap caused by the expansion of the expansion platform. The sliding side door is fixed by mechanical positioning locking structure, with lock,

Easy to open, safe and reliable characteristics.

The WTJ5060JKT passenger stairway was modified with a second class chassis. The product is equipped with advanced electrical controls

System, the platform has two sets of docking aircraft safety devices and height display circuit, the product appearance is beautiful, operation

Convenient, safe and reliable. The product ladder lifting platform height is set to 2400mm ~ 5800mm,

And has a fine-tuning function to adjust the height error between the passenger ladder platform and the aircraft door, suitable for A300, A310,

A320, A330, A340, B737, B747, B757, B767, B777, etc.

WTJ5060JKT passenger stairway consists of two types of chassis, frame assembly, upper ladder assembly, lower ladder assembly and platform

Assembly, fine-tuning mechanism, hydraulic system and electrical system, etc.
